Plateau Isolation Rack System – PIRS

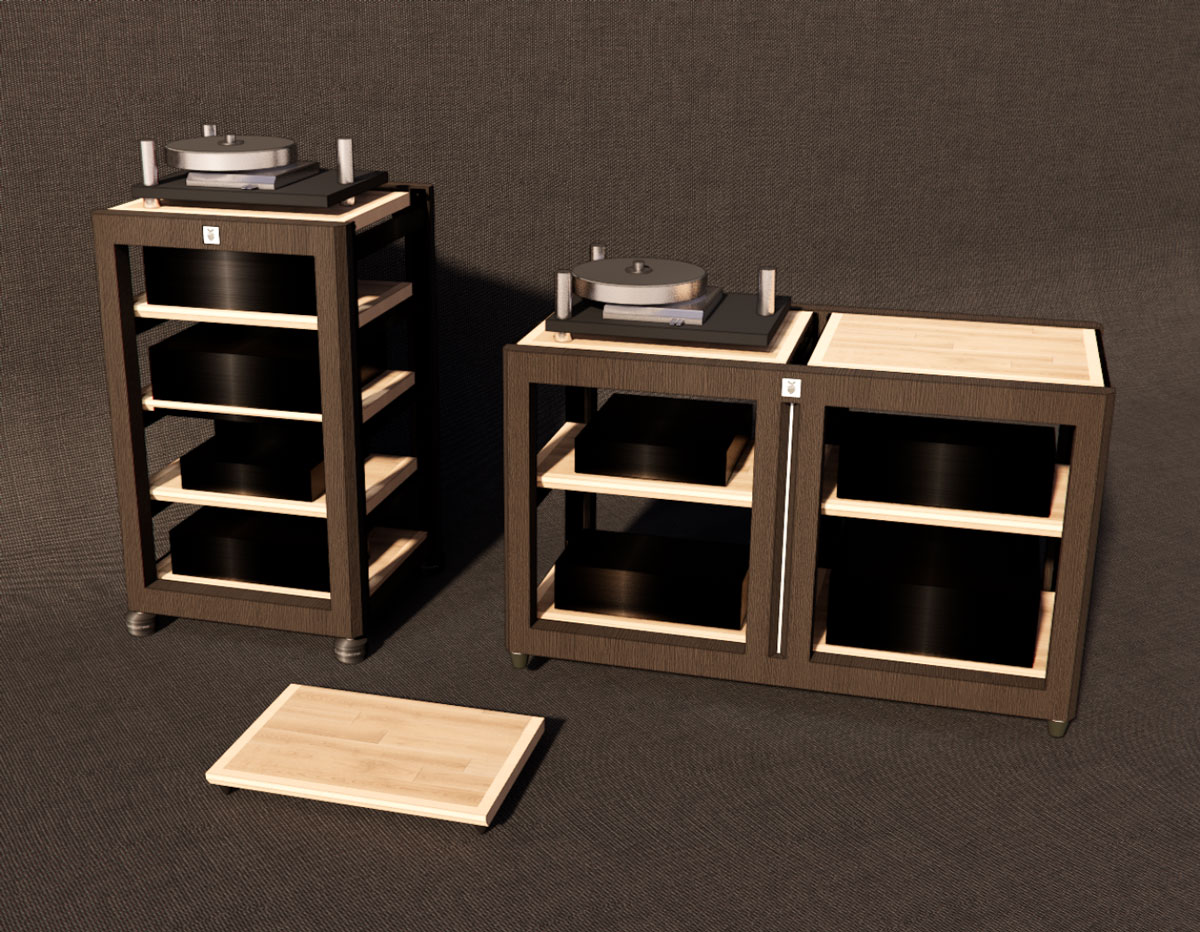

Our PIRS audio racks are made with the same care and attention as all our audio accessories. We have three models; the PIRS 39” tall unit with five isolated trays, the PIRS-30” low unit which is a side-by-side configuration which has six trays, and our new PIRS-21” which is a low single wide design with three trays. Each configuration incorporates fixed bottom trays which are isolated with rubber bushings as per the hand sketch.



The structural profiles are fabricated of solid maple with a front profile of 2-5/8” wide
and a return of 2-3/8”, and the uprights on the front face incorporate a beveled profile that channels airborne vibration away from both the structure and the equipment inside.

The front opening of the rack is 19-1/4” wide to accept larger equipment or components that were designed to be commercially rack mounted.



The PIRS racks are also designed to accept the GP3 or GP2 isolation platforms in place of the top tray. Several of our customers have chosen this upgrade solution to enhance the performance and sound quality of their turntables, CD players, tube amps, etc.

Our hardwood of choice is maple for all the same reasons identified in the description of our GP [Great Plains] platforms. As illustrated in that description, it is available in multiple maple species or in a semi-opaque black stain. We can also custom fabricate in other types of woods but restrict ourselves to diffuse porous species for performance reasons.



The aluminum channel can be provided in a satin clear brushed finish or in a satin black powder-coated finish, and the hardware is finished to suit the aluminum channels.



All our alloy is CNC machined to provide maximum accuracy, which is crucial in achieving our tolerances and the exact shelf spacing at 1-1/2” increments.



Our GP-T equipment trays leverage the same construction principles as our GP3 & GP2 platforms. These trays are laminated 1-3/8” thick maple cartridges with enclosed side rails and a large, beveled lead edge. We also use the same style of rubber conical feet as our larger isolation platforms.

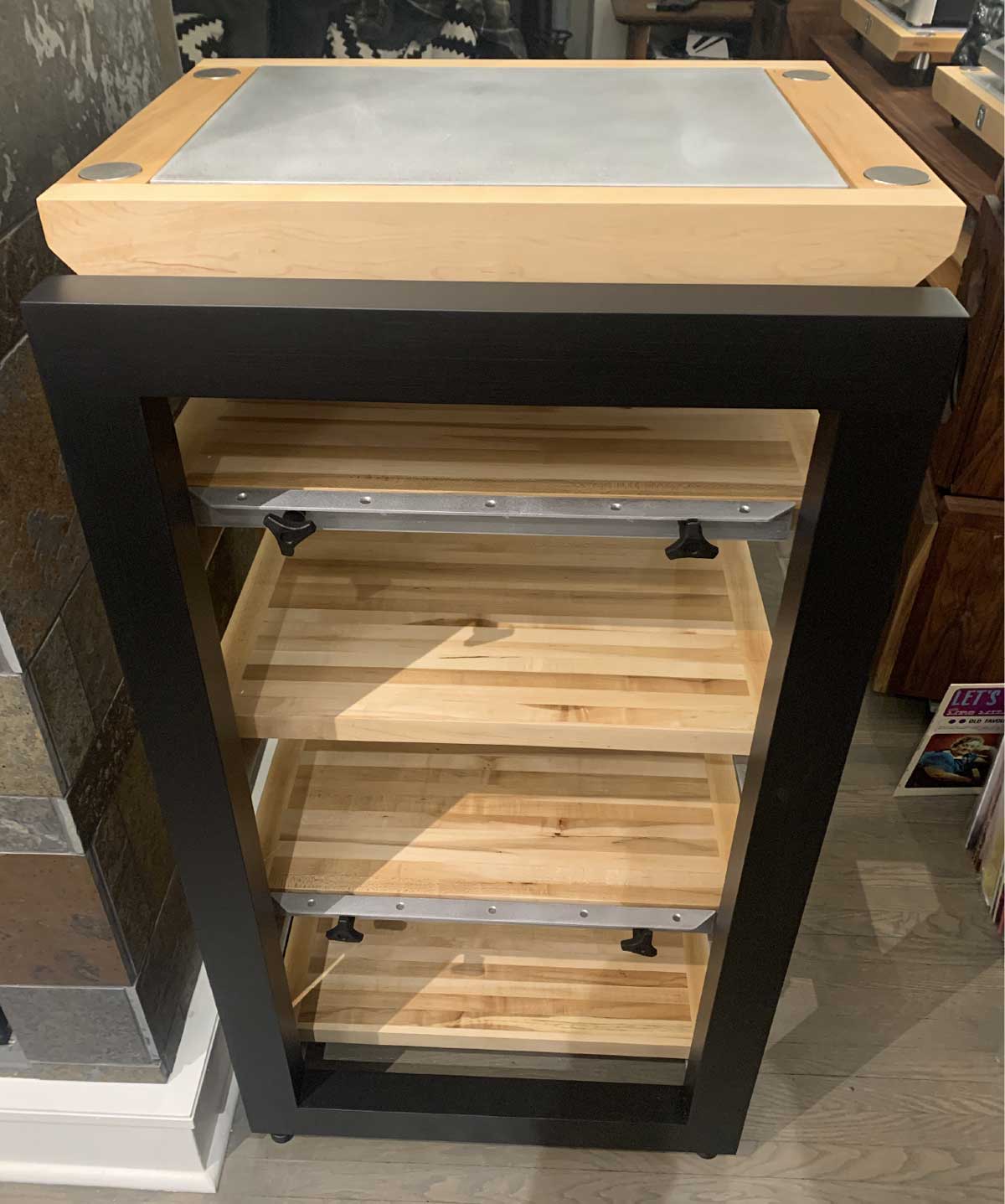

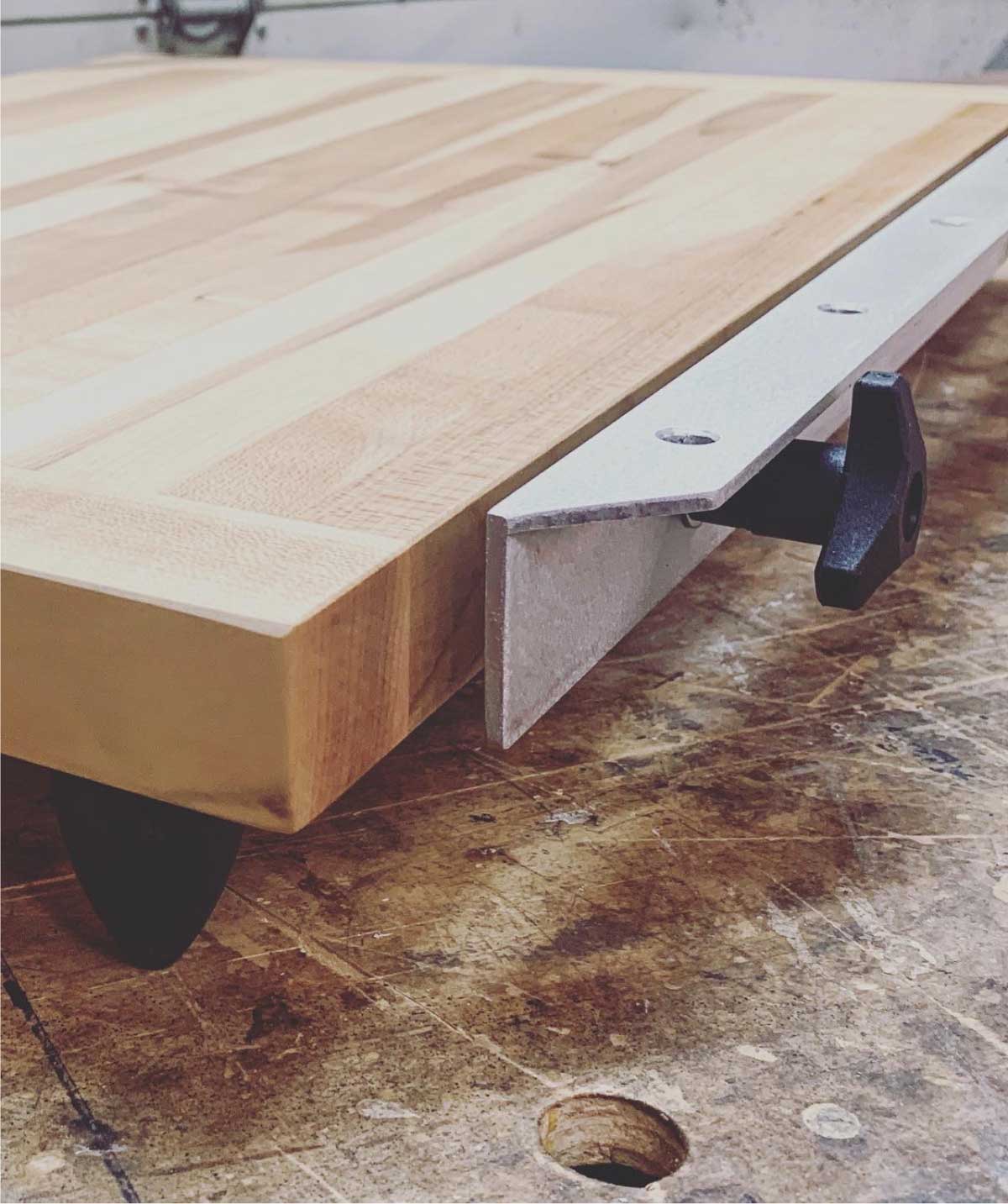

Another feature of our PIRS racks is our adjustable cable management rails. These adjustable rails are secured to the back of two of the shelves to help manage the visual chaos but more importantly, keep power cables away from interconnect and speaker cables.



Sean’s MK II isolation platforms
Sean’s MK II isolation platforms

The PIRS Rack trays incorporate oversized adjustable conical rubber feet, which are similar to our highly effective GP3 Isolation platforms.



Sean’s MK II isolation platforms

IsoAcoustic GAIA-TITAN Isolation feet upgrade.

Combining the mass of the Tough Nut PIRS racks with IsoAcoustics’ patented isolators creates a synergistic effect and provides a low-noise floor. This is achieved by effectively eliminating the impact of structure-borne vibrations, ensuring a purer and clearer audio experience.



Sean’s MK II isolation platforms

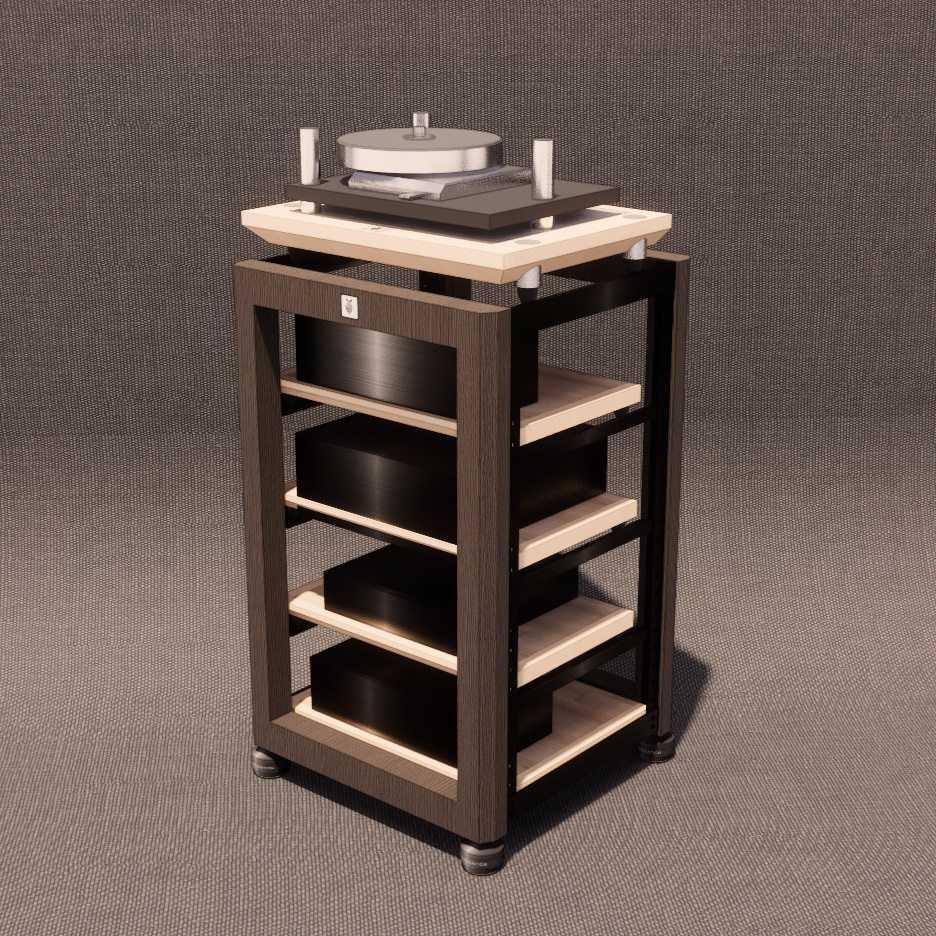

Tough Nut Audio : PIRS-42”
PIRS-39

This upright configuration has a solid maple frame with a cross section that is

2-5/8” on the face and a 2-3/8” deep on the return profile.
Overall dimensions = W 24-1/2” x D 24-1/4” x H 39” H [ plus levelers]
Overall weight with 5 trays is in excess of 150lbs
Please see costing chart below.

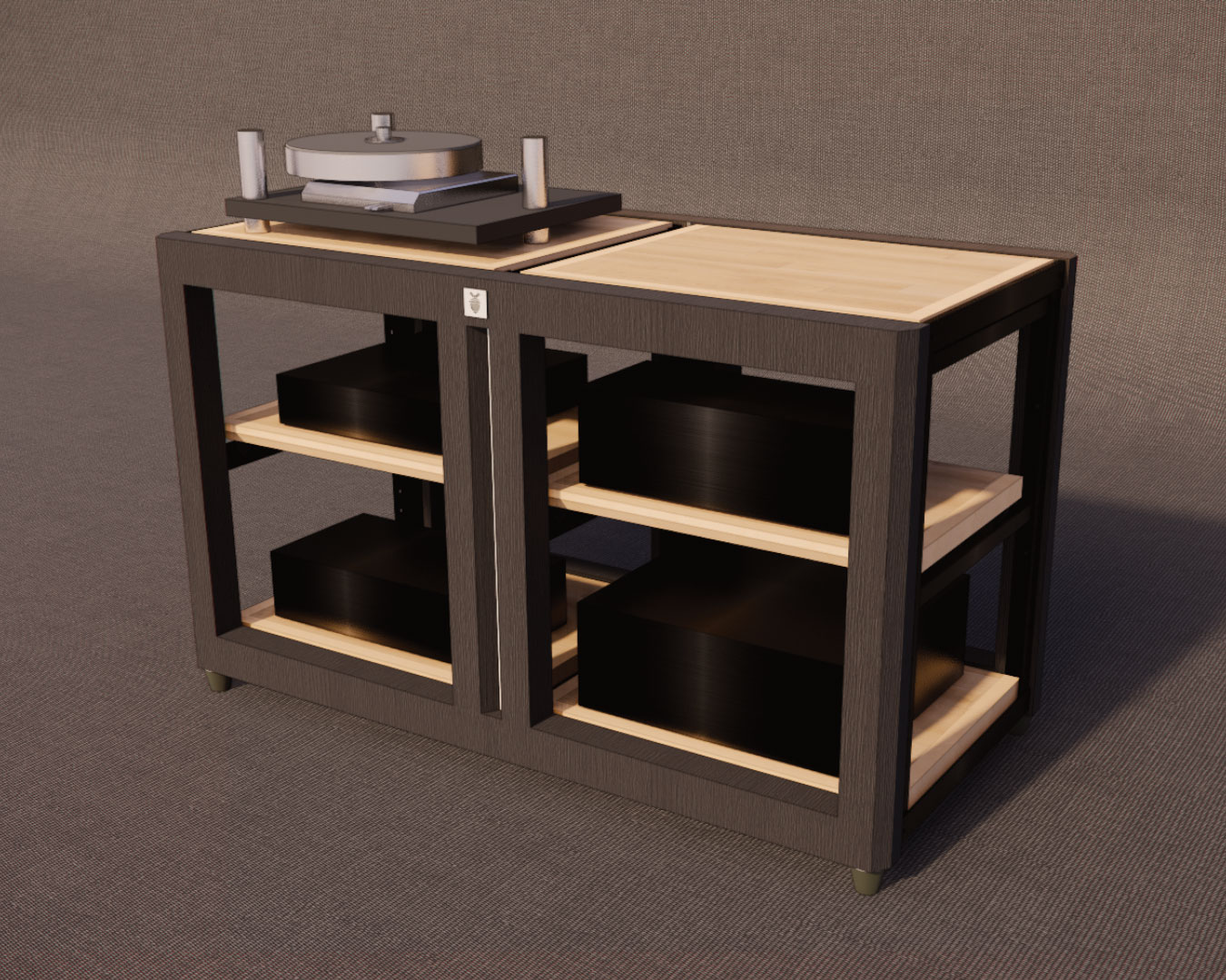

Tough Nut Audio : PIRS-30”
PIRS-30

This unit has a solid maple frame with a cross section that is 2-5/8” on the face and a   2-3/8” deep on the return and incorporates a structural centre post.
Overall dimensions = W 46-1/2” x D 24-1/4” x H 30” [ plus levelers ]
Overall weight with 6 trays is in excess of 175lbs

Please see costing chart below.

Tough Nut Audio : PIRS-30”

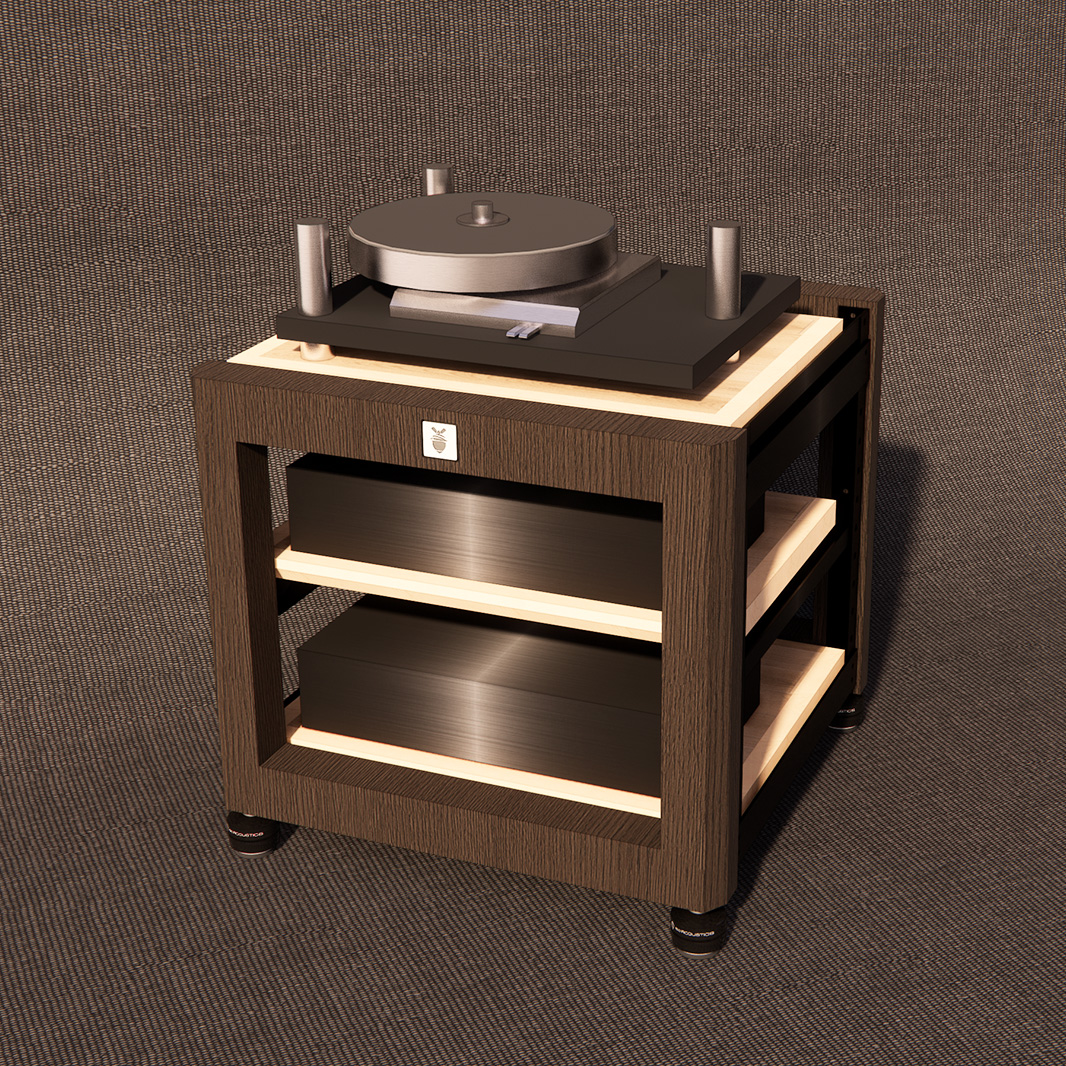

PIRS-21”

As per our larger rack configurations, the PIRS-21 also includes the robust solid maple frame with a cross section that is 2-5/8” on the front face and a return of 2-3/8” and has overall dimensions of W 24-1/2” x D 24-1/4” x H 21” [ plus levelers ]

Overall weight with 3 trays is in excess of 85lbs
Please see costing chart below.

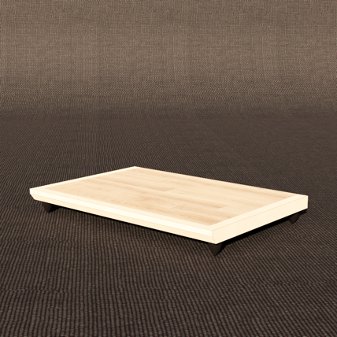

Tough Nut Audio : GP-T

GP-T

The GP-T trays are made of solid maple with a beveled face and utilize the same style of conical feet as our Great Plains isolation platforms.
Overall dimensions = W 23” x D 16” x 2-3/4” H
Overall weight 14bs +/-
Cost per additional tray units also include one pair of treated aluminum rails (satin clear-coated or satin black powder-coated) and fasteners.

$496.75

Our New Pricing Structure

Tough Nut Audio has come a long way in a short time. This past March, we exhibited with Corby’s Audio at the 2024 Montreal AudioFest and it became evident that it was time to take our burgeoning company to the next level.

Since that time, we have worked hard to draw on the expertise of others, to increase our already stellar performance, quality standards, and reduce some of the production costs.

This evolution to both performance and the manufacturing has been very rewarding. Our ethos has been that “we are on an endless quest for less”…less vibration, less restricted reproduction of music, and coincidentally, now less cost as well.

See our new pricing below…

BB - Black stained maple with hard satin clear varnish & satin black powder-coated aluminum rails
BC - Black stained maple with hard satin clear varnish & clear-coated brushed aluminum rails
CB - Maple with hard satin clear varnish & satin black powder-coated aluminum rails
CC - Maple with hard satin clear varnish & clear-coated brushed aluminum rails
OB - Maple with natural Danish oil finish & satin black powder-coated aluminum rails
OC - Maple with natural. Danish oil finish & Clear-coated brushed aluminum rails
PIRS - 39”
x 24-½” x 24-¼”
$6,722.90 $4,612.52
$6,522.90 $4,612.52
$6,308.90 $4,346.87
$6,108.90 $4,346.87
$5,951.25 $4,081.22
$5,751.25 $4,081.22
PIRS - 30”
x 48” x 24-¼”
$8,638.85 $5,509.89
$8,405.55 $5,509.89
$8,069.55 $5,244.24
$7,869.55 $5,244.24
$7,658.55 $4,978.59
$7,458.55 $4,978.59
PRS - 21”
x 24-½” x 24-¼”
$4,139.40 $3,770.04
$3,989.40 $3,770.04
$4,076.75 $3,347.42
$3,876.75 $3,347.42
$3,766.25 $3,081.77
$3,556.25 $3,081.77

Please contact us for pricing on IsoAcoustics Titan Series upgrade.

All prices are subject to applicable taxes. Shipping and crating are not included in this price list.

Please note that custom sizes are available and will be priced individually.

Please note that custom sizes can also be produced which may effect cost and delivery.
